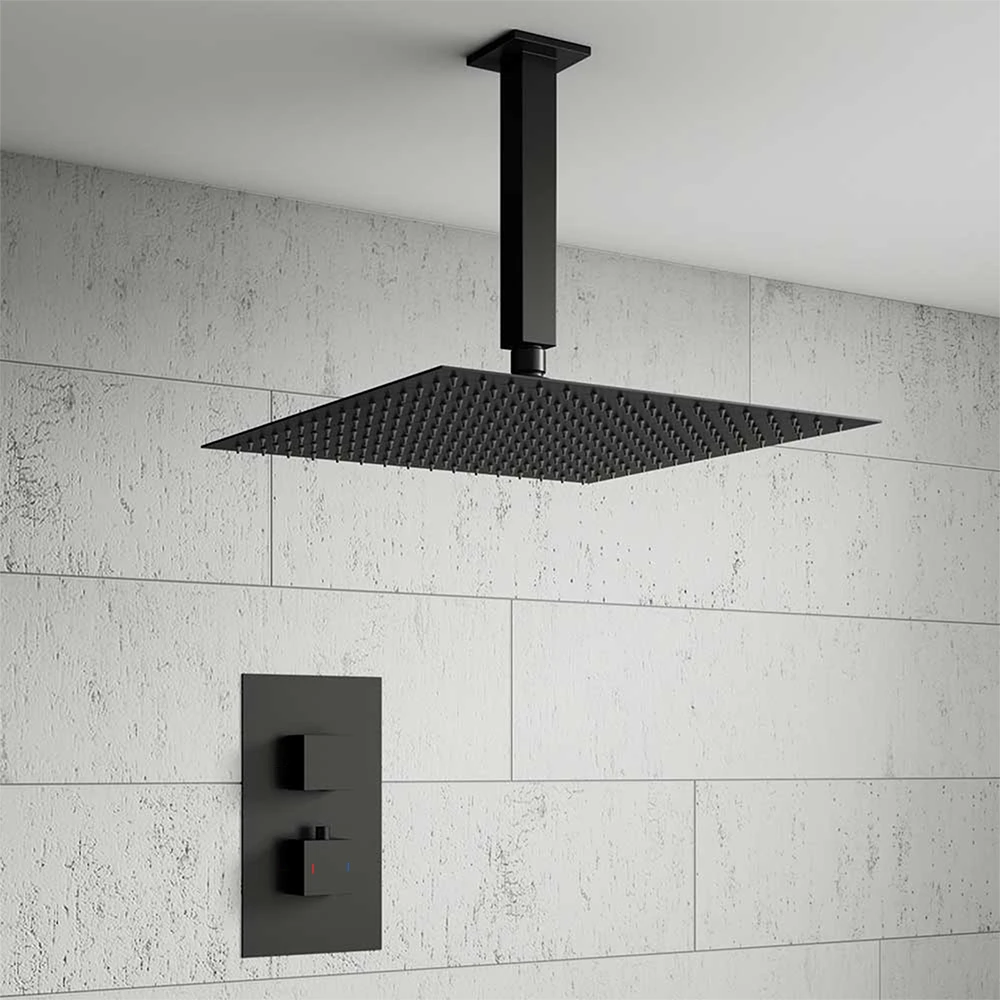

Harbour Status Concealed Shower Valve & Ceiling Mounted Fixed 300mm Shower Head

Features:

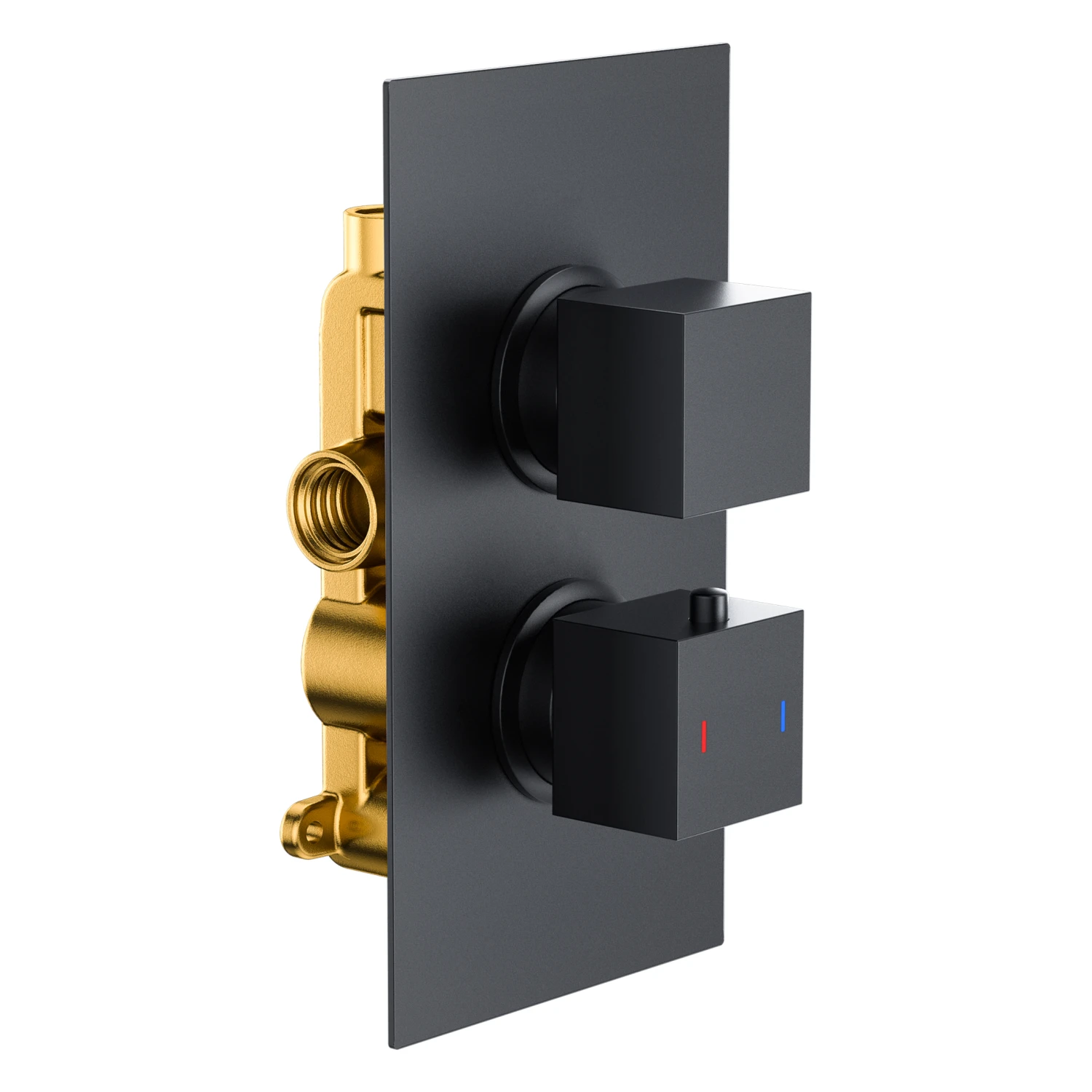

• 1 outlet concealed thermostatic shower valve with ceiling mounted shower arm and either a 200mm or 300mm shower head
• Shower arm is made from Brass with a Matt Black finish
• Shower head is made from Stainless Steel with easy clean nozzles
• Interchangeable backplate design allows portrait or landscape orientation
• Crafted from brass (valve body), stainless steel (backplate) & zinc alloy (handles)
• Minimum water pressure required: 0.5 bar
• Maximum 6.0 bar water pressure
• WRAS approved
• Complies with BSEN 1111

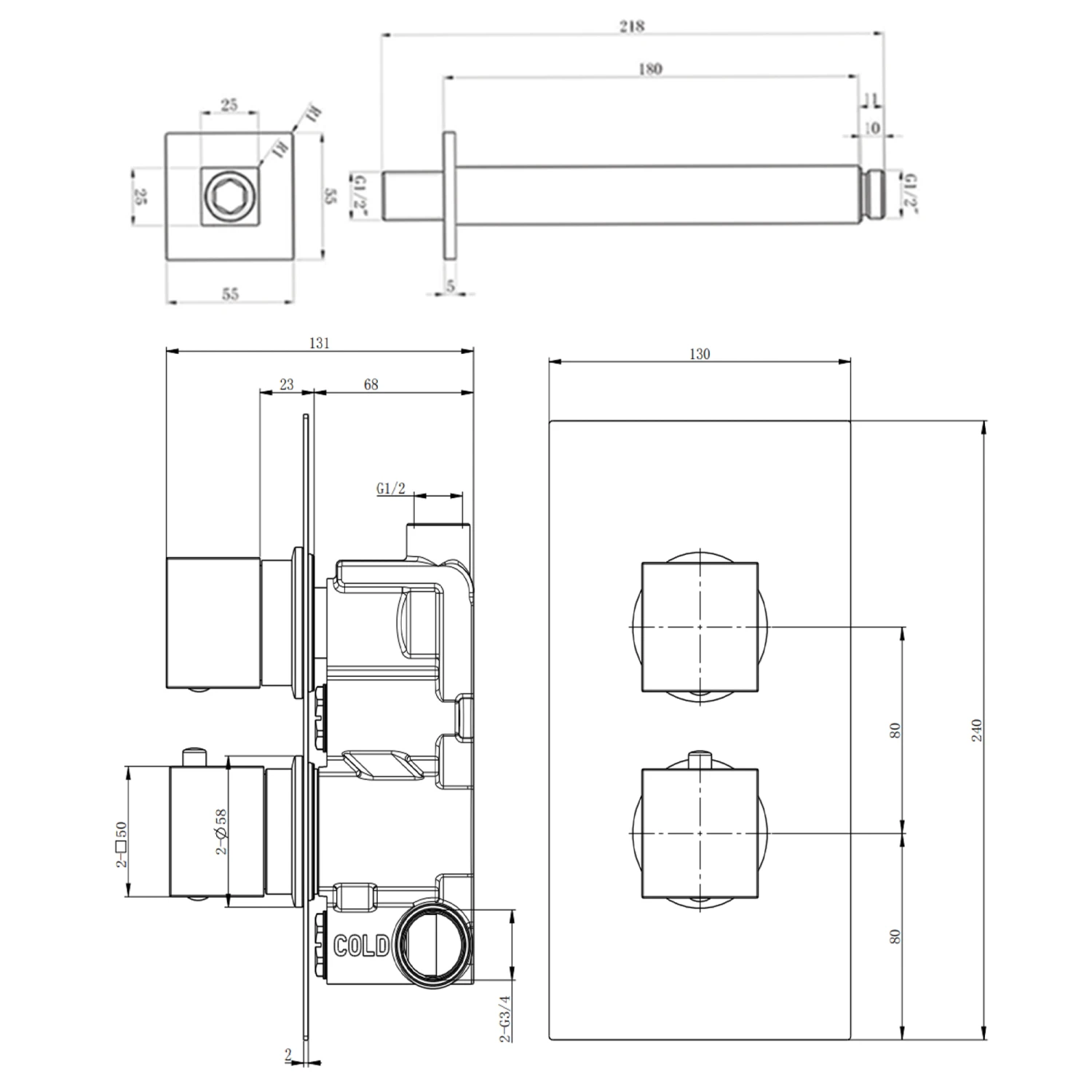

Shower valve dimensions:

• Height – 130mm
• Width – 240mm
• Depth – 131mm

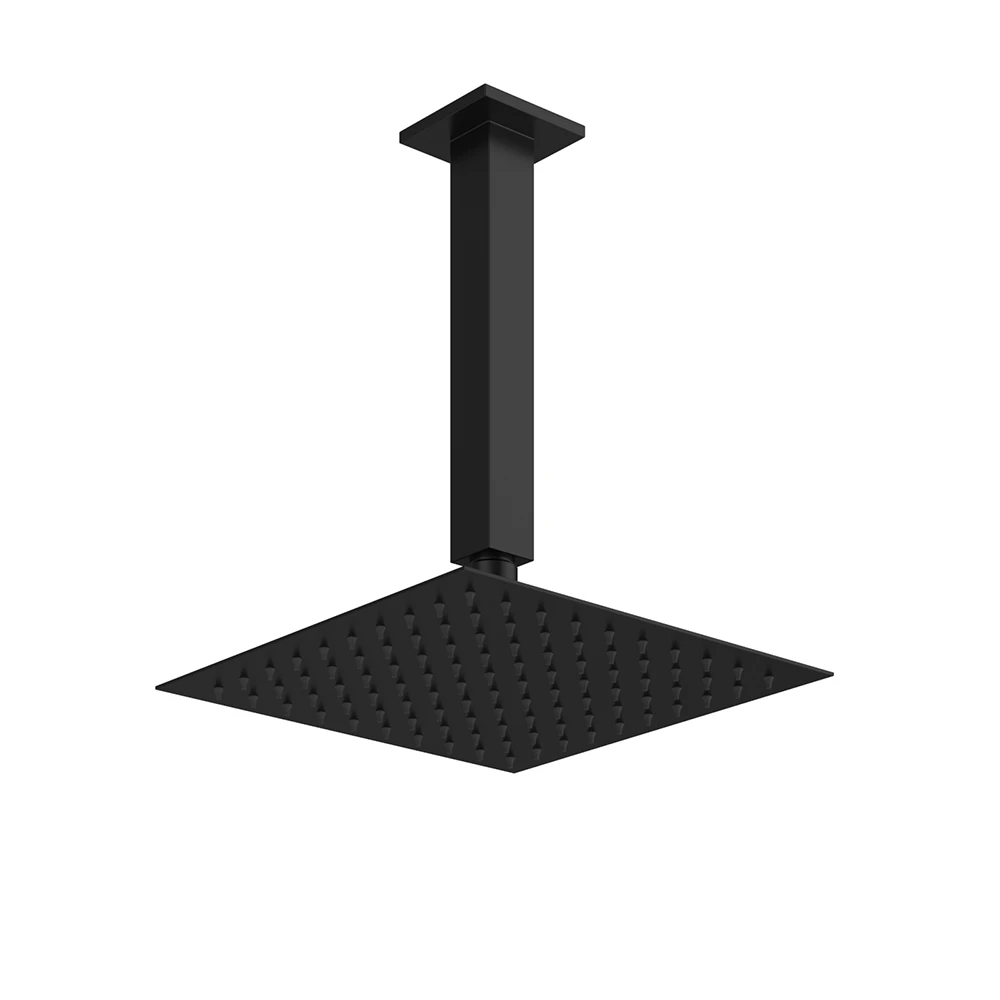

200mm shower head dimensions:

• Height: 47.5mm
• Depth: 200mm
• Width: 200mm

300mm shower head dimensions:

• Height: 51.5mm
• Depth: 300mm
• Width: 300mm

Shower arm dimensions:

• Height: 218mm
• Depth: 55mm
• Width: 55mm

Flow rates:

• 0.5 bar (l/min): 11.1
• 1.0 bar (l/min): 15.5
• 1.5 bar (l/min): 18.9
• 2.0 bar (l/min): 21.8
• 3.0 bar (l/min): 26.5
• 4.0 bar (l/min): 30.5
• 5.0 bar (l/min): 33.8
