Harbour Status Concealed Thermostatic Valve & Slide Rail Kit

Features:

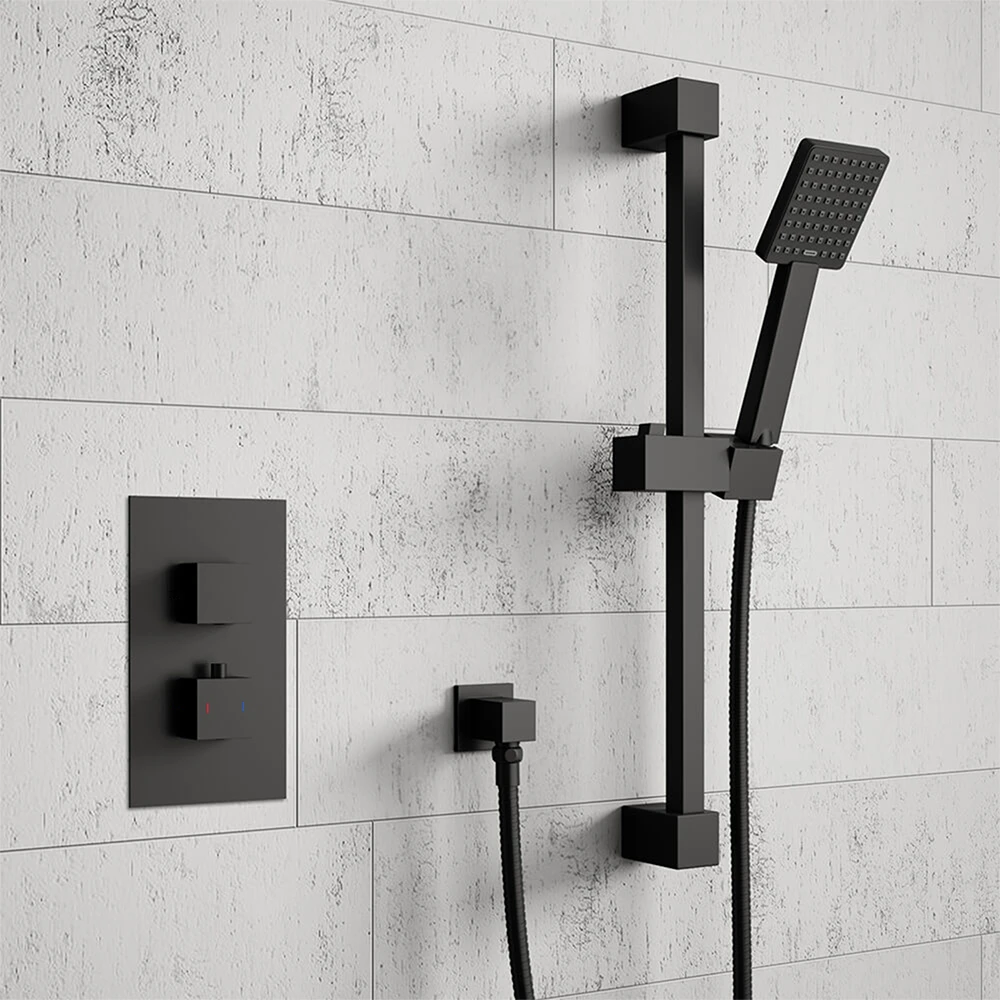

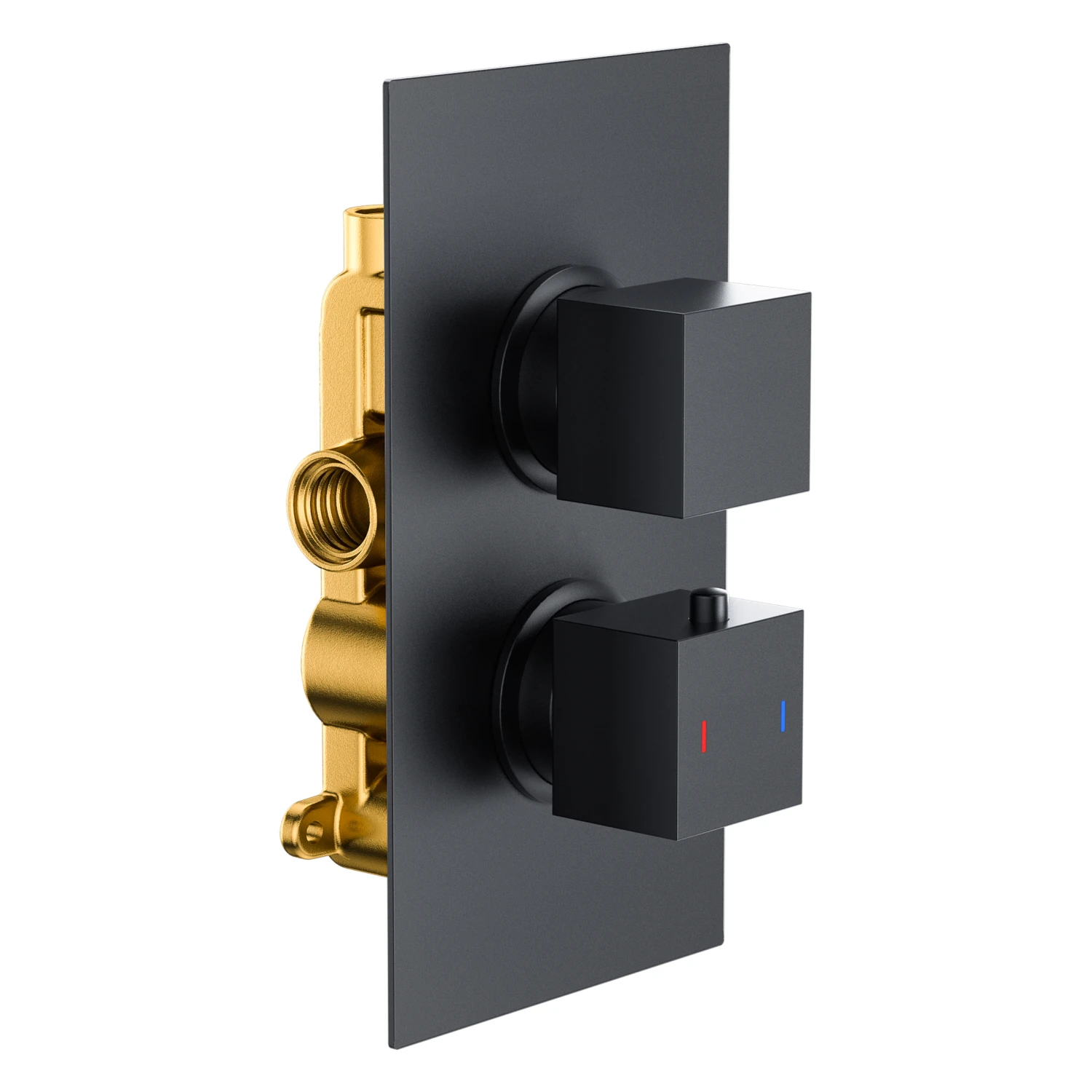

• 1 outlet concealed thermostatic shower valve with riser rail kit, paddle handset, shower hose and shower elbow
• Thermostatic valve protects you from sudden changes in temperature, helping prevent scalding
• Ceramic disc technology prevents any unwanted leaks or drips
• Interchangeable backplate design allows portrait or landscape orientation
• Complies with BSEN 1111
• WRAS approved
• Minimum pressure required: 0.5 bar
• Maximum 6.0 bar water pressure

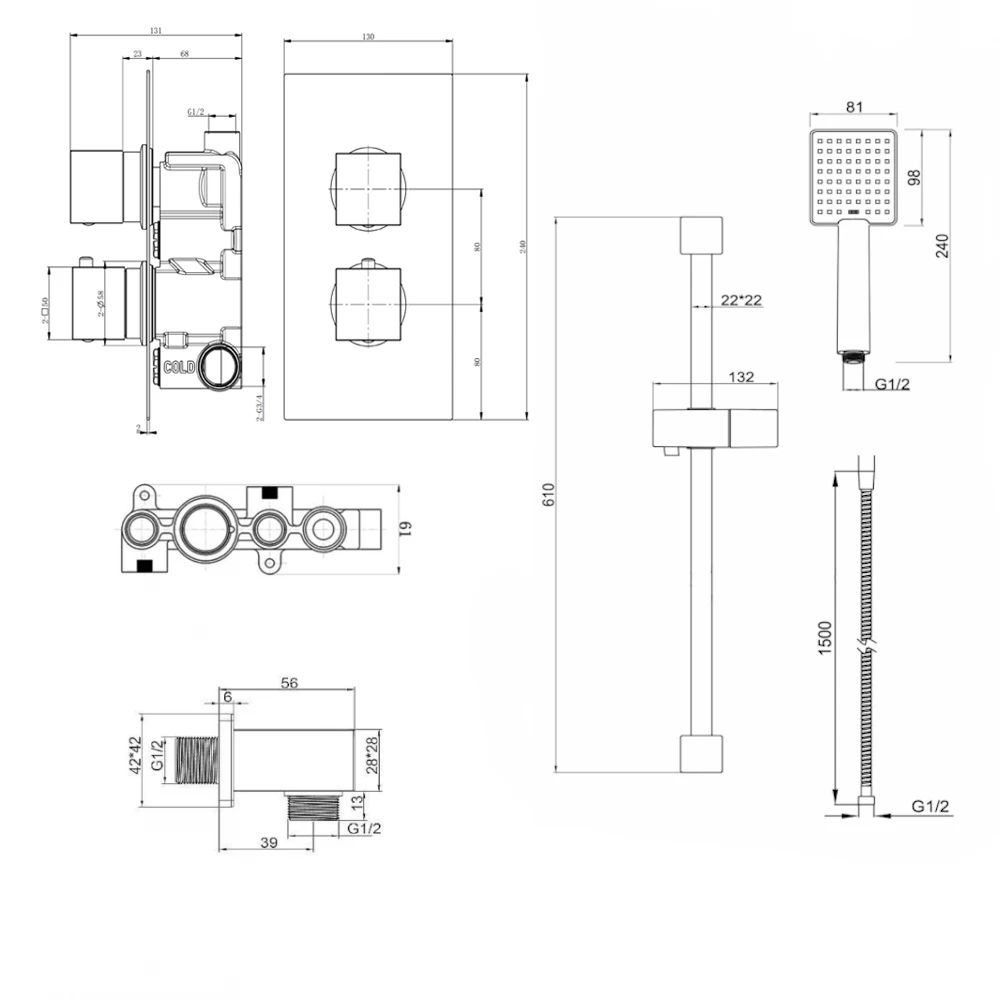

Dimensions:

• Height – 130mm
• Width – 240mm
• Depth – 131mm

Flow rates:

• 0.5 bar (l/min): 11.1
• 1.0 bar (l/min): 15.5
• 1.5 bar (l/min): 18.9
• 2.0 bar (l/min): 21.8
• 3.0 bar (l/min): 26.5
• 4.0 bar (l/min): 30.5
• 5.0 bar (l/min): 33.8
