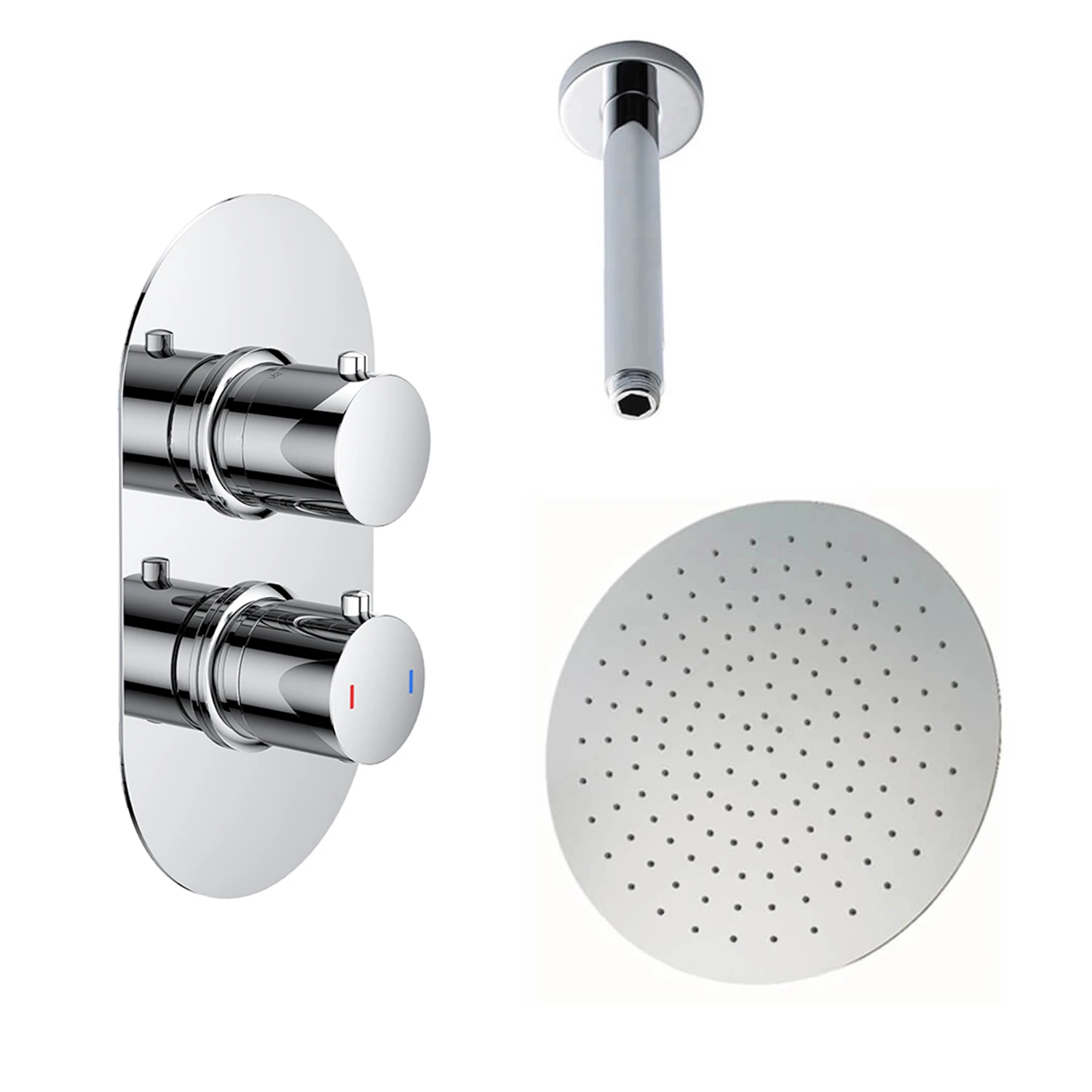

Melanie Concealed Shower Valve, 380mm Curved Wall Mounted Arm & 300mm Fixed Shower Head

Customise your bathroom with the Melanie Concealed Shower Valve & Fixed Shower Head. You can tailor your ideal shower setup with a choice of four different shower arms and three shower heads. What’s more, the valve can be easily installed either vertically or horizontally, giving you the flexibility to enhance your bathroom’s look effortlessly.

Inside the valve, you’ll find the innovative Anti Calc Thermostatic Cartridge, skillfully designed to address common issues like sudden drops in water temperature and reduced water flow due to blockages. To make the most of this advanced technology, simply press the safety button on the thermostatic handle, and then make an adjustment from hot to cold. This straightforward process effectively removes any accumulated dirt, limescale, and debris that might have accumulated over time, ensuring your shower runs smoothly.

Shower Valve Features:

• Modern 1 outlet concealed design with dual handle control
• Sleek Chrome finish
• Thermostatic valve with auto-shutoff mechanism protects you from sudden changes in temperature, helping prevent scalding
• Anti Calc thermostatic cartridge – advanced anti-debris technology that helps prevent blockage & limescale build-up for effortless temperature control
• Ceramic disc technology prevents any unwanted leaks or drips
• Dual handle control – top diverts the flow of water between outlets and the bottom controls the water temperature
• Interchangeable backplate design allows portrait or landscape orientation
• Crafted from brass (valve body), stainless steel (backplate) & zinc alloy (handles)
• Minimum water pressure required: 0.5 bar
• WRAS Approved
• Complies with BSEN 1111
• Covered by a 10 year manufacturer’s guarantee

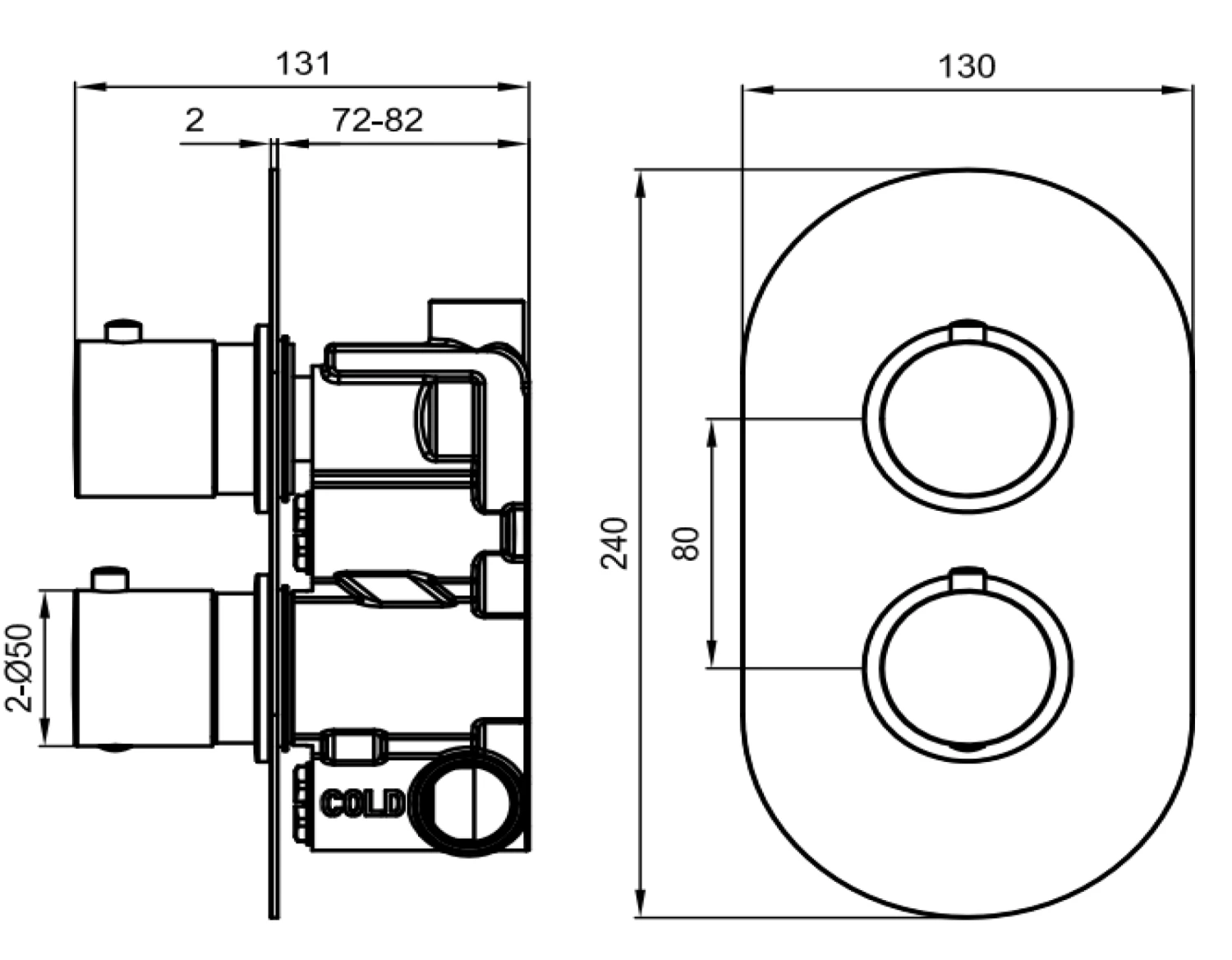

Dimensions:

• Height: 240mm
• Width: 130mm
• Depth: 131.5mm

Flow rates:

• 0.5 bar (l/min): 11.1 l/min
• 1.0 bar (l/min): 15.5 l/min
• 1.5 bar (l/min): 18.9 l/min
• 2.0 bar (l/min): 21.8 l/min
• 3.0 bar (l/min): 26.5 l/min
• 4.0 bar (l/min): 30.5 l/min
• 5.0 bar (l/min): 33.8 l/min

Shower Head Features:

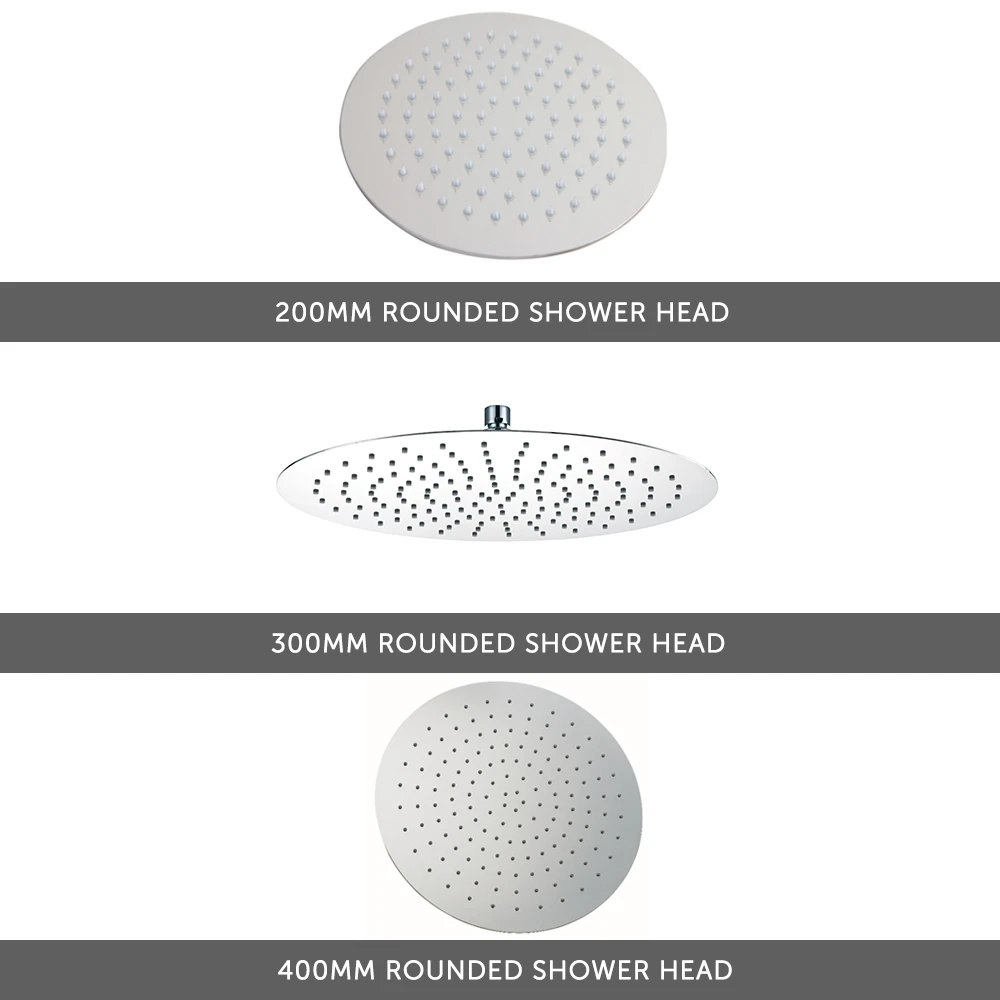

• Choose from 200, 300, or 400mm
• Stainless steel shower head in a sleek Chrome finish
• Swivel joint easily adjusts the angle of the head
• Easy-clean rubber nozzles for easy cleaning
• Lifetime manufacturer’s guarantee

Shower Arm Features:

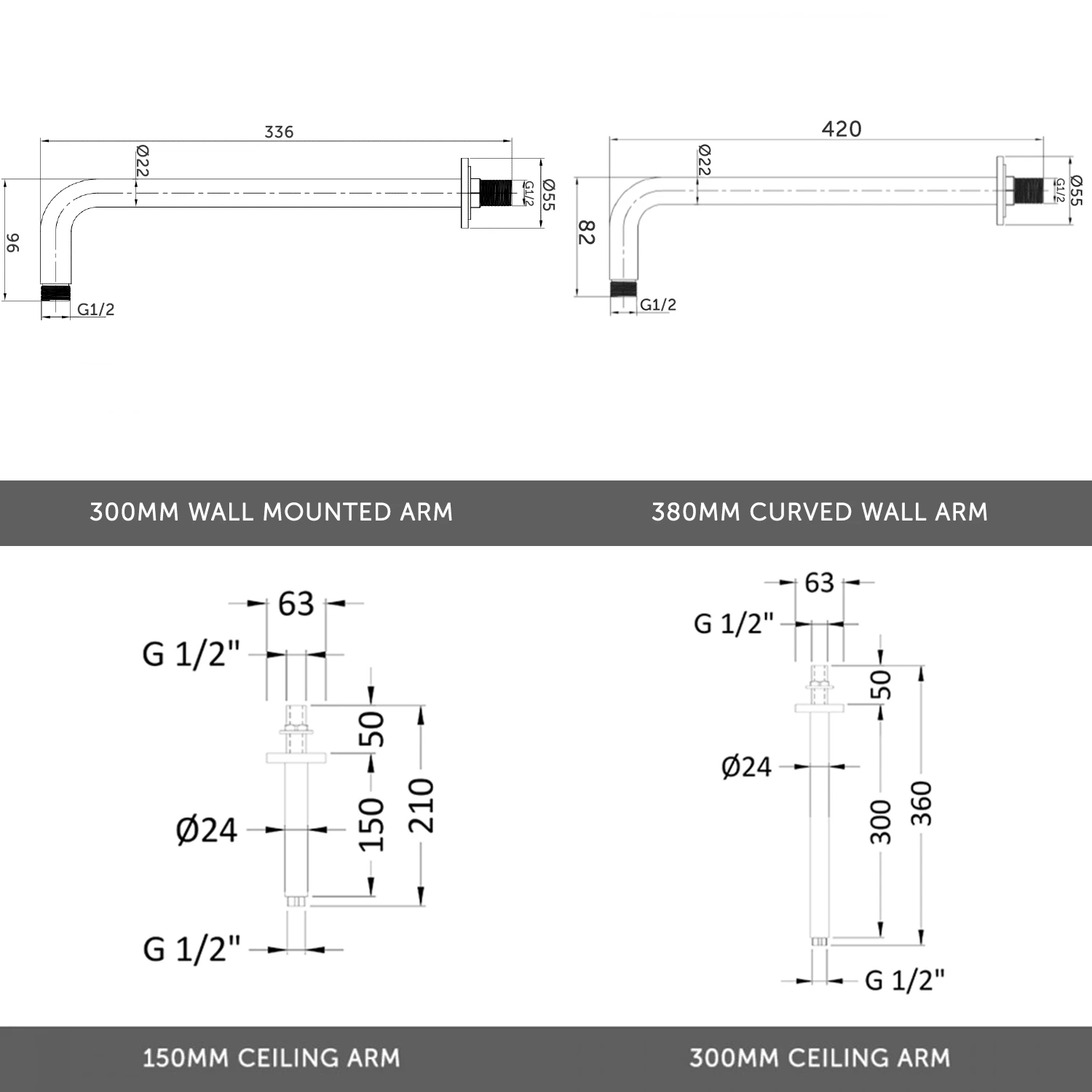

• 4 shower arms to choose from to customise your shower
• Constructed from brass with a dazzling Chrome finish
• 150 & 300mm ceiling arms – 10 year manufacturer’s guarantee
• 300mm & 380mm curved wall arms – 5 year manufacturer’s guarantee
